| 加工定制：否 | 类型：汽车故障诊断仪 | 品牌：UIF |
| 型号：T605 |
T605has powerful functions, which can support all Toyota cars, with smart outlook, competitive price and convenient operation. It is a separately- operated tool without help of PC.
1. Function introduction
? 鈥� Fault Codes
? 鈥� Clear Codes
? 鈥� Read Data Stream
? 鈥� Active Test
? 鈥� Function Test
2. Systems supported
T605 can work on the following systems:
WITHOUT CANBUS SYSTEM:
1). POWERTRAIN
? 鈥� ENGINE AND ECT
? 鈥� BATTERY
? 鈥� CCS
? 鈥� HV BATTERY
? 鈥� HV ECU
? 鈥� EV
? 鈥� STOP AND GO
? 鈥� SEQUENTIAL MT
? 鈥� LASER CRUISE
2). CHASSIS
? 鈥� ABS
? 鈥� AIRSUS
? 鈥� EMPS|EHPS
? 鈥� FREE-TRONIC
? 鈥� TIRE PRESSURE
? 鈥� VGRS
? 鈥� KDSS
? 鈥� T_M CONTROL
3). BODY
? 鈥� AIR CONDITIONER
? 鈥� SRS AIRBAG
? 鈥� BODY
? 鈥� BACK-DOOR
? 鈥� D-DOOR
? 鈥� P-DOOR
? 鈥� RR-DOOR
? 鈥� RL-DOOR
? 鈥� D-SEAT
? 鈥� P-SEAT
? 鈥� RR-SEAT
? 鈥� RL-SEAT
? 鈥� REAR SEAT SW
? 鈥� GATEWAY
? 鈥� METER
? 鈥� MIRROR
? 鈥� COMBI SW
? 鈥� ENTRY/START
鈥� POWER SOURCE CONTROL
? 鈥� RTRCTBL HARDTOP
? 鈥� CLEARANCE SONAR
? 鈥� SLIDE ROOF
? 鈥� STEERING PAD
? 鈥� TILT/TELESCO
? 鈥� AFS
? 鈥� MASTER SW
? 鈥� RAIN SENSOR
4). IMMOBILIZER
CANBUS SYSTEM
1). POWERTRAIN
? 鈥� ENGINE AND ECT
? 鈥� ECT
? 鈥� MULTI-MODE M/T
? 鈥� CRUISE CONTROL
? 鈥� HV BATTERY
? 鈥� HYBRID CONTROL
? 鈥� LASER CRUISE
? 鈥� RADAR CRUISE
? 鈥� E-ACM
2). CHASSIS
? 鈥� ABS
? 鈥� FOUR WHEEL DRIVE
? 鈥� EMPS
? 鈥� INTELLIGENT PARKING ASSIST
3). BODY
? 鈥� SRS AIRBAG
? 鈥� AIR CONDITIONER
? 鈥� PRE-CRASH
? 鈥� COMBINATION METER
? 鈥� ELECTRIC POWER CONTROL
3. Main features
? 鈥� Competitive price: About 10% cost of that of the professional device with the similar functions
? 鈥� With powerful functions: can realize most functions of Intelligent Tester II.
? 鈥� On-board power charge
? 鈥� Conveniently connection and simply using
4. Appearance and Key Descriptions

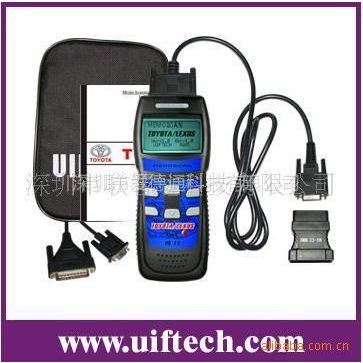

The appearance of a T605 is as shown in the above figure.
1). LCD screen: 128*64
2). Enter key: confirm selection and enter
3). Esc key: go back to the previous screens
4). up/down arrows: moves the selection pointer and scrolls up or down
5). LEFT/RIGHT arrows: move cursor.
6). Power button
7). Diagnostic extension cable: OBDII -16PIN
